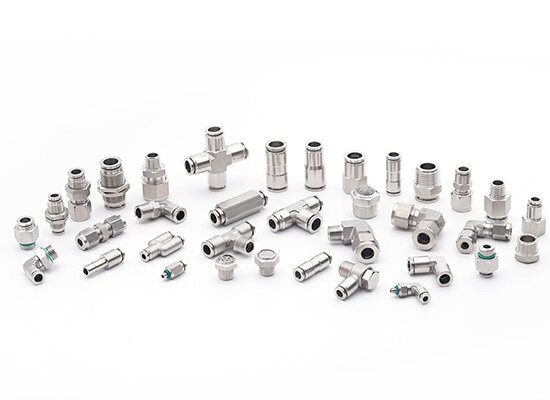

What are stainless steel push to connect fittings?
Stainless steel push to connect fittings or stainless steel push in fittings which have the same structure as common pneumatic push in fittings. There is a stainless steel lock claw inside it, and a sealing ring made of Viton.
When the a pneumatic air tubing is inserted into the fitting, the sealing ring just surrounds and seals the tubing without any leakage. Differ from common pneumatic push in fittings, stainless steel push to connect fittings are fully made of stainless steel for its body and push button or sleeve.
Features and characteristics
◆ High temperature resistance, corrosion resistance,
◆ The maximum working pressure reach above 2.0MPa.
◆ Easy to operate
◆ Rustless, can be used in food, medical industry
◆ Long work life
◆ Reliable sealing, leakage free
Technical parameters
◆ Working pressure: -100KPa~2.0MPa
◆ Working temperature: -20~120℃
◆ Application medium: compressed air, water, oil, other gases, vacuum
◆ Main body material: stainless steel 304, 316, 316L
◆ Sealing material: FKM (VITON) fluorine rubber
Material classification
According to the main body material, stainless steel push to connect fittings can be divided into 304, 316, 316L series.
Application range
◆ Food Industry
◆ Medical industry
◆ Corrosive environment
◆ High temperature and high pressure environment
For more information, please feel free to Contact with us.
