When I first encountered the term "Globe Control Valve," an image of a bulky cast iron valve with a handwheel came to mind, seemingly capable only of simple on/off operation. But upon deeper understanding, I realized that Globe Control Valves are far more than that—they are the "precision control masters" of industrial fluid control. While they may share visual similarities with gate valve or check valve , the core value of globe valves lies in their precise flow regulation capability, not just open/close functionality.
Resembling a "globe",Pneumatic globe control valve as known as globe conrol valve or globe valve,using pneumatic actuator to drive the valve core to move up and down, changing the flow area at the valve seat to regulate fluid pressure, flow rate, temperature, or liquid level.It sounds somewhat similar to the mechanism of angle seat valve, but due to its S-shaped or Z-shaped passage, it has a more precise control of fluid accuracy.
The pneumatic globe control valve is regulated by control signals, and the diaphragm or piston rod of the actuator drives the valve core to leave the valve seat, forming a diameter. Because of precise adjustment,fast response speed, low cost, simple structure, high safety factor and so on advantages, are very suitable for pharmaceuticals, biological fermentation, fine chemicals,Boiler Vents and Drains and Turbine Seals and Drains.
Pneumatic globe Control Valve,has an internal structure resembling a "globe" or sphere, and it is primarily used for precise control of the process medium.
Accurate flow regulation capability：As a globe control valve driven by pneumatic structure, it can not only achieve precise flow regulation capability, but also achieve a high modulation ratio between the maximum adjustable flow rate and the minimum controllable flow rate, usually in the range of 30:1~100:1.
Quick response, suitable for quickly adjusting needs：Compressed air driven pneumatic actuator drive structure can achieve faster response speed, suitable for rapid adjustment needs. The response time is generally tens to hundreds of milliseconds, much faster than electric actuators.
Reliable structure, suitable for high temperature, high pressure or corrosive media：The pneumatic globe control valve adopts a spherical cavity and metal sealing structure; The valve core and seat are made of high-temperature and corrosion-resistant materials such as stainless steel, Hastelloy, titanium alloy, Stellite alloy, etc. Very suitable for applications with high temperature, high pressure, acid resistance, and corrosion resistance.
Can achieve remote automatic control：Pneumatic globe control valve is remotely controlled by electrical signals through valve positioners in DCS and PLC systems. Valves in the reaction zone of chemical plants that require remote operation do not require entry into hazardous areas; Or it is very suitable for managing hundreds of valves in the entire factory in a centralized control room.
Easy to maintain：The structure of pneumatic actuators is usually simple, with only basic components such as diaphragms, springs, and chambers, and no complex electric devices such as motors, gears, and control boards. In some more dangerous scenarios, such as high humidity, dust, corrosive or explosion-proof environments, using pneumatic valves is more worry free and reliable than electric valves, and maintenance costs are also lower.
Pneumatic globe Control Valve,has an internal structure resembling a "globe" or sphere, and it is primarily used for precise control of the process medium.Globe control valves work by using a movable disk element and a stationary ring seat to regulate the flow of a fluid. The disk can be adjusted to either allow more fluid through or restrict the flow, depending on the desired output.
The operation is typically controlled through pneumatic or manual means, making it suitable for pneumatic globe control valve applications.The valve's characteristic shape allows for precise control over the flow rate, which is why it is commonly used in systems that require fine adjustments, such as in fuel oil systems or cooling water systems.
Fluid enters the valve beneath the seat.A plug (attached to a stem) moves up/down via an actuator (manual, pneumatic, or electric).Lifting the plug increases flow; lowering it restricts or stops flow.You can read this article for specific details on the work of the pneumatic globe control valve.
Pneumatic globe Control Valve,has an internal structure resembling a "globe" or sphere, and it is primarily used for precise control of the process medium.
◆ The precise control of process fluids in industries such as pharmaceuticals, biological fermentation, and fine chemicals requires high flow performance and stability.
◆ Fuel Oil Systems: In fuel oil systems, globe control valves manage the flow of oil to burners or engines, ensuring the proper fuel mixture for efficient combustion.
◆ Boiler Vents and Drains: Globe valves help control the flow of water or steam in and out of boilers, ensuring safe venting or draining of the system.
◆ Turbine Seals and Drains: Used to manage the sealing and draining of turbines, globe valves help ensure that the turbine's operation remains efficient and safe.
Pneumatic globe Control Valve,has an internal structure resembling a "globe" or sphere, and it is primarily used for precise control of the process medium.There are several series of pneumatic globe control valves, each suited to different operational needs.
These series all belong to standard pneumatic globe control valves, with the valve body size and flow capacity distinguished according to the numerical values.
◆ GV500 Series Globe Control Valve It is a type of valve with the largest nominal diameter.
◆ GV400 Series Flat-Seat Valve
◆ GV300 Series Globe Control Valve
◆ GV200 Series Globe Control Valve

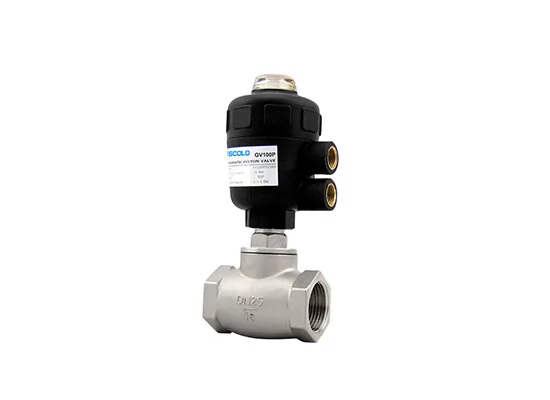

◆ GV100 Series Globe Control Valve
Simple structure and high cost performance are generally used in industrial process control, water treatment, HVAC systems, and other situations where adjustment accuracy is not required.
Yes, globe control valves are directional, meaning they are designed to control the flow of fluid in one direction. The flow direction is crucial for proper operation, and it must be installed in the correct orientation to avoid malfunction.
A high-pressure globe control valve is specifically designed to handle high-pressure environments. These valves are built with strong materials and seals that can withstand the stress of high-pressure fluid or gas systems, ensuring reliable and safe performance.
For more information or specific product inquiries, contact our team at Fokca, your trusted pneumatic globe control valve manufacturer, to discuss customized solutions tailored to your needs.
A globe control valve is an essential component in many industrial applications, used to regulate the flow of liquids or gases within a pipeline.
As a globe control valve manufacturer, we focus on supplying high-quality valves designed to handle precise control in a wide range of systems.
These globe valves are favored by global customers for their ability to provide accurate flow regulation, ensuring efficient operation of various systems, including pneumatic systems.
