In various industrial automation fields or pneumatic systems, the pneumatic ball valve is widely used to control the flow of compressed air or other gaseous media, enabling on/off control of different mechanisms within the system. As an actuator component, the air ball valve performs fast open/close operations via a pneumatic actuator, making it a critical component for ensuring the efficient and reliable operation of the entire pneumatic control system. Understanding the working principle and maintenance essentials of pneumatic ball valves helps improve system efficiency and reduce failure rates.

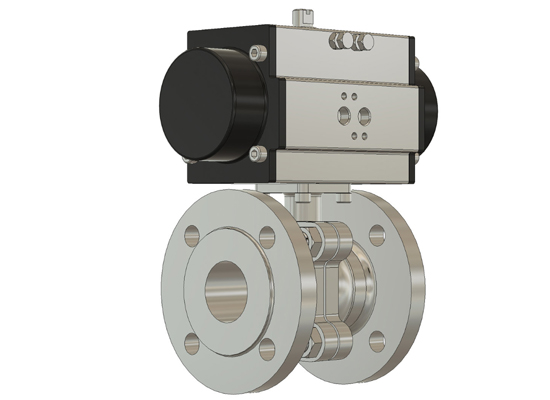

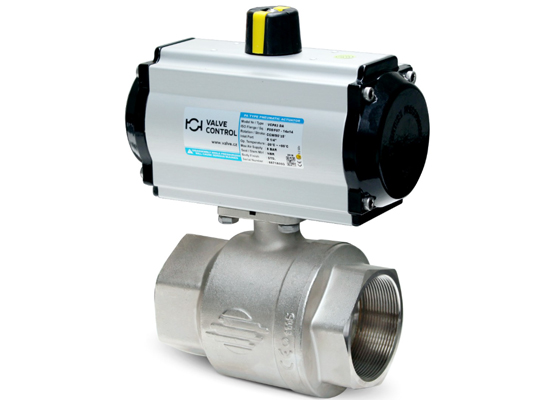

The core structure of a pneumatic ball valve includes a perforated ball and a pneumatic actuator. The actuator drives the hollow ball to rotate using compressed air. When the internal passage of the ball aligns with the pipeline, gas flows through freely; when the ball rotates 90 degrees and the passage is perpendicular to the pipeline, the flow is completely blocked. Due to their excellent sealing performance, fast response, and ease of operation, pneumatic ball valves are especially suitable for applications requiring frequent switching or remote control in pneumatic systems.
The Operation of a ball valve is straightforward: the flow of media is controlled by a rotating ball inside the valve body. When the handle or actuator rotates to the open position, the ball turns, aligning the valve port with the flow path, allowing media to pass through. Conversely, when the valve is closed, the ball rotates to block the flow path and stop the media from passing.
Pneumatic ball valves, actuated by compressed air, operate quickly and respond promptly. The open/close action typically takes only a few hundred milliseconds to a few seconds, making them suitable for automation systems that demand high response speed. They perform especially well in rapid switching or cycle control.
Thanks to the spherical sealing structure and the use of PTFE or metal sealing materials, pneumatic ball valves maintain excellent sealing performance under high pressure or frequent operation, preventing media leakage and improving system safety and cleanliness.
The valve body is compact with fewer internal components, leading to a low failure rate. If leakage or malfunction occurs, the disassembly and replacement process is relatively simple, helping to shorten maintenance time and reduce operational costs.
With options for stainless steel bodies, corrosion-resistant sealing materials, and materials that withstand high temperatures and pressures, these valves can operate reliably even in harsh environments. Their simple design minimizes the risk of leakage and ensures long-term reliability, contributing to the overall efficiency of the pneumatic system.
Regular inspection and maintenance are critical to the continuous and reliable operation of ball valves in pneumatic systems. This helps detect potential issues early and avoid failures that could affect system efficiency or result in other costly consequences.
Routine Inspection: Check for air or fluid leakage, delayed action, or other abnormal behavior.
Valve Body and Pipeline Cleaning: Remove dust and debris from the valve body, valve seat, and sealing components.
Seal and Lubrication: Check if O-rings are aged, and apply grease to moving parts like the valve stem.
Actuator Air Supply: Ensure air pressure is stable and clean to prevent moisture or contaminants from damaging pneumatic components.
Connection Check: Ensure the valve and pipeline connections are secure, and bolts and nuts are tight to prevent air leakage or structural instability.
Functional Testing: Perform open/close cycle tests to verify response time and sealing condition.
Insufficient or unstable air supply pressure, causing the actuator to fail to rotate the valve;Internal actuator faults, such as piston sticking or damaged seals.
Leaks may occur at the valve stem, sealing surface, or connection flanges;Common causes include aged seals, improper installation, media corrosion, or damaged ball surface.
Inlet or exhaust of the actuator is blocked;Solenoid valve throttle is set too low.
High-frequency switching accelerates wear of seals and ball;Unstable drive control may cause mechanical shock.
Most standard pneumatic ball valves can be equipped with manual override devices or mechanical bypasses, allowing manual operation when air supply is cut off.
Compressed air, inert gases,Water, steam,Corrosive chemical liquids,Oils and liquids with low particulate content.
Ensure the valve is aligned coaxially with the pipeline;Clean the pipeline before installation to avoid welding slag or debris entering;Install filters and regulators at the air inlet to ensure clean, dry air supply;
