When selecting industrial valves, stainless steel valve bodies—thanks to their corrosion resistance and high strength—are widely used in chemical processing, water treatment, food production, and many other industries. However, although all three common materials belong to the stainless-steel family, 304, 316, and 316L differ greatly in performance. Choosing the wrong grade can lead to premature equipment failure, leaks, and serious safety risks. This article compares these materials in terms of composition, performance, and real-world application, helping you confidently choose the most suitable stainless-steel valve body.

Composition Differences: 304 vs 316 vs 316L

Material performance starts with composition. All three are austenitic stainless steels containing chromium (Cr) and nickel (Ni), but the key differences lie in the amounts of molybdenum (Mo) and carbon (C).

Performance Comparison

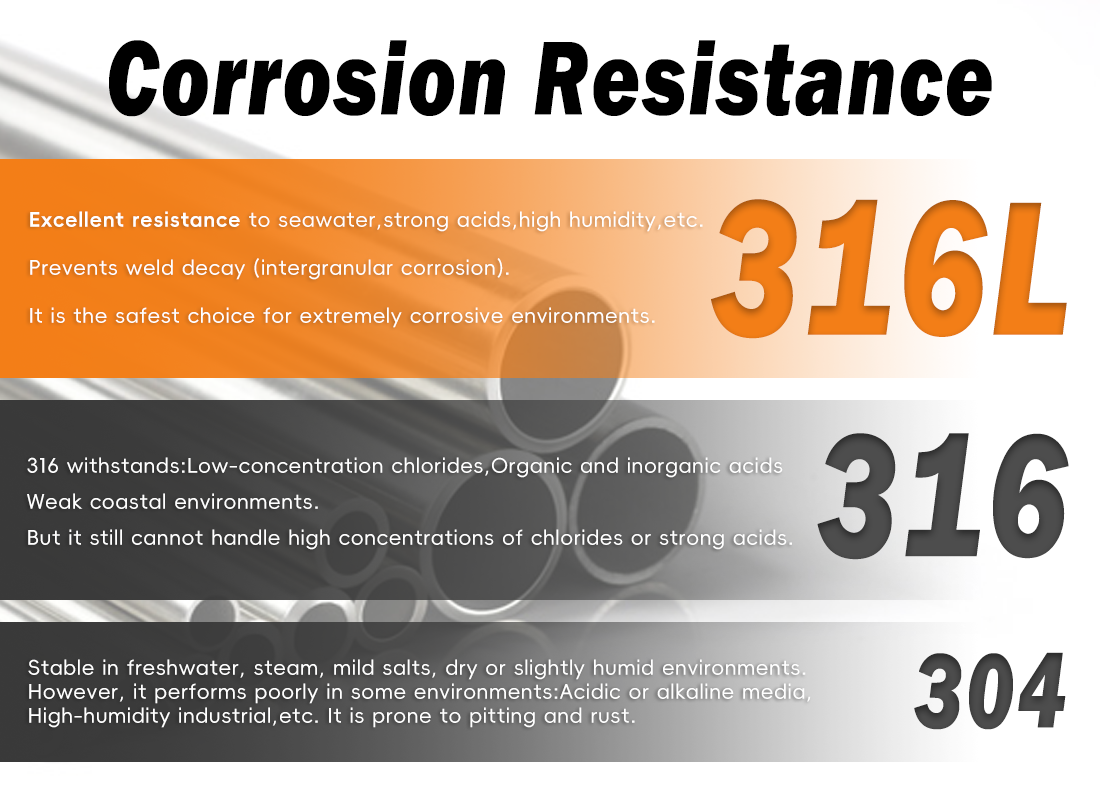

1) Corrosion Resistance: 316L ＞ 316 ＞ 304 (Largest Difference)

▪304 Stainless Steel

Stable in freshwater, steam, mild salts, and dry or slightly humid environments.

However, it performs poorly in:

Chloride environments (e.g., seawater)

Acidic or alkaline media

High-humidity industrial environments

It is prone to pitting and rust.

▪316 Stainless Steel

Thanks to added molybdenum, 316 withstands:

Low-concentration chlorides

Organic and inorganic acids

Weak coastal environments

But it still cannot handle high concentrations of chlorides or strong acids.

▪316L Stainless Steel

The top performer.

Excellent resistance to seawater, strong acids, high humidity, and high temperature

Prevents weld decay (intergranular corrosion)

It is the safest choice for extremely corrosive environments.

2) Mechanical Strength: Similar, but 316L Has Better Toughness

All three materials have:

Tensile strength ≥ 480 MPa

Yield strength ≥ 205 MPa

Well able to handle standard industrial pressures (≤2.5 MPa).

316L, with its low-carbon content, offers superior toughness and weldability, ideal for:

Complex valve structures

High/low-temperature conditions (-270℃ to 450℃)

3) Cost: 304 ＜ 316 ＜ 316L

Although 316L is the most expensive, its long-term durability reduces maintenance costs in harsh environments.

Recommended Application Scenarios

1) 304 Stainless Steel Valve Body — Best for Standard Conditions

Suitable for:Building water supply and HVAC systems、Food-grade clean water delivery、Industrial cooling water / compressed air systems、Dry or slightly humid environments、System pressure ≤ 1.6 MPa

Notes: Don’t use 304 in chloride-rich or corrosive environments.

2) 316 Stainless Steel Valve Body — Balanced Choice for Moderate Corrosion

Suitable for:Weak acid/alkali chemicals (≤10% concentration)、Pharmaceutical pure water / distilled water、Industrial valves in coastal regions、Medium corrosion environments、System pressure ≤ 2.0 MPa

Advantages：Excellent balance between corrosion resistance and cost—often the default choice in higher-end industries.

3) 316L Stainless Steel Valve Body — Reliable Solution for Extreme Corrosion

Suitable for:Strong acid and alkali chemicals (H₂SO₄, HNO₃, HCl, etc.)、Seawater desalination systems、Marine ballast and offshore platform pipelines、High-temperature, high-humidity environments (e.g., Southeast Asia, Middle East)、 Welded or complex high-pressure valve structures (≤2.5 MPa)

Advantages：The safest choice for harsh environments.

How to Choose: Match the Material to the Application

Choosing valve materials should be based on actual working conditions, not “the more expensive, the better.”

If the medium is freshwater, steam, or clean air → 304

Economical, stable, and sufficient.

If the medium contains mild chlorides or weak chemicals → 316

Good balance of corrosion resistance and cost.

If the environment involves strong acids, seawater, or high humidity → 316L

Best performance and long-term reliability.

If pressure is >2.5 MPa → Prefer 316L

Better safety margin.

Selecting the right stainless-steel valve material means choosing a reliable partner for your system. 304 offers the best cost–performance ratio; 316 gives balanced corrosion resistance and durability; 316L provides maximum protection in harsh environments.

By matching material to your operating conditions, you can ensure system stability while achieving the best economic outcome.

If you also need to use any type of pneumatic valves in your system, you can contact us directly.
