When selecting valve materials, the valve body material acts as the “foundation”—it directly determines whether the entire system can operate safely and reliably. Tin bronze valve bodies, thanks to their well-balanced performance, excel in industries with strict material requirements such as marine engineering, chemical processing, and precision instruments.This article explains their composition and core advantages, followed by a detailed comparison with the more commonly known stainless-steel valve bodies to help users make better material selections.

Tin Bronze Valve Body: Composition & Performance Overview

The base material of tin bronze is high-purity copper, with tin as the main alloying element. Phosphorus, zinc, nickel, and other trace elements are added to further enhance the material's properties.
From a composition standpoint, copper typically exceeds 80%, tin ranges from 3.5% to 4.9%, and phosphorus from 0.03% to 0.35%. Some grades include 4–7% lead for improved lubricity or around 1% nickel to enhance stability.
During manufacturing, impurities such as lead and iron are carefully controlled below 0.02% to ensure high purity and consistent performance.

This composition gives tin bronze valve bodies several notable advantages:

• Excellent corrosion resistance




  They perform well in seawater, freshwater, steam, and most chemical media. Their corrosion rate in seawater can be as low as 0.03 mm per year, much lower than common metals, and the material does not easily rust even in humid environments.

• Low friction & superior wear resistance




  Tin and phosphorus form hard compounds, and lead provides self-lubrication, reducing the friction coefficient to as low as 0.013. Even under long-term sliding motion, wear remains minimal, and the valve operates smoothly without additional lubrication.

• Easy to cast, machine, and install




  Tin bronze has very low casting shrinkage, making it ideal for producing complex valve structures with high precision. And its machining performance can reach 80%, which makes subsequent machining very convenient.

Tin Bronze vs Stainless Steel: A Comparison Across Key Factors

Many users struggle when choosing between tin bronze and stainless-steel valve bodies. The truth is, neither material is universally better—each suits different environments.

Below is a comparison across five critical dimensions:

•Corrosion resistance

Stainless steel (304, 316L) performs well in strong acids and alkalis, but in chloride-rich environments such as seawater or long-term humidity, it may suffer pitting or crevice corrosion, shortening service life.

Tin bronze forms a dense, protective oxide layer—like wearing a “shield.” Its corrosion rate in seawater or salt-spray environments is far lower than stainless steel, making it the preferred choice for ballast water systems, bilge systems, and marine pipelines.

For freshwater and steam, both materials work well, but tin bronze is more tolerant of impurities and requires less maintenance.

•Wear resistance & sealing performance

Stainless steel has high hardness (HB 150–200) but lacks self-lubrication. Over time, valve stems and sealing surfaces tend to wear and may require periodic lubrication.

Tin bronze naturally provides lubrication, ensuring smooth operation without extra maintenance.

Its sealing surfaces wear slower, and the overall service life can be 1.5–2 times that of stainless steel—especially advantageous in high-cycle automation systems.

•Manufacturing & installation

Stainless steel is difficult to cast, especially for complex valve geometries, and requires special tooling during machining—this increases cost.

Tin bronze has excellent castability and fluidity, enabling precise, complex structures.Although its density (8.8–8.9 g/cm³) is higher than some stainless grades, its uniform structure means it installs easily without reinforcement.

•Cost-effectiveness

Stainless steel raw materials are more expensive, and machining costs are typically 1.2–1.5 times higher than bronze.

For pressures ranging from 1.0–1.6 MPa, tin bronze can deliver comparable performance at significantly lower cost.

Maintenance frequency is much lower—roughly one-third that of stainless steel—and its recycling value is high.

Overall, for mid-low pressure applications, tin bronze offers superior cost-performance.

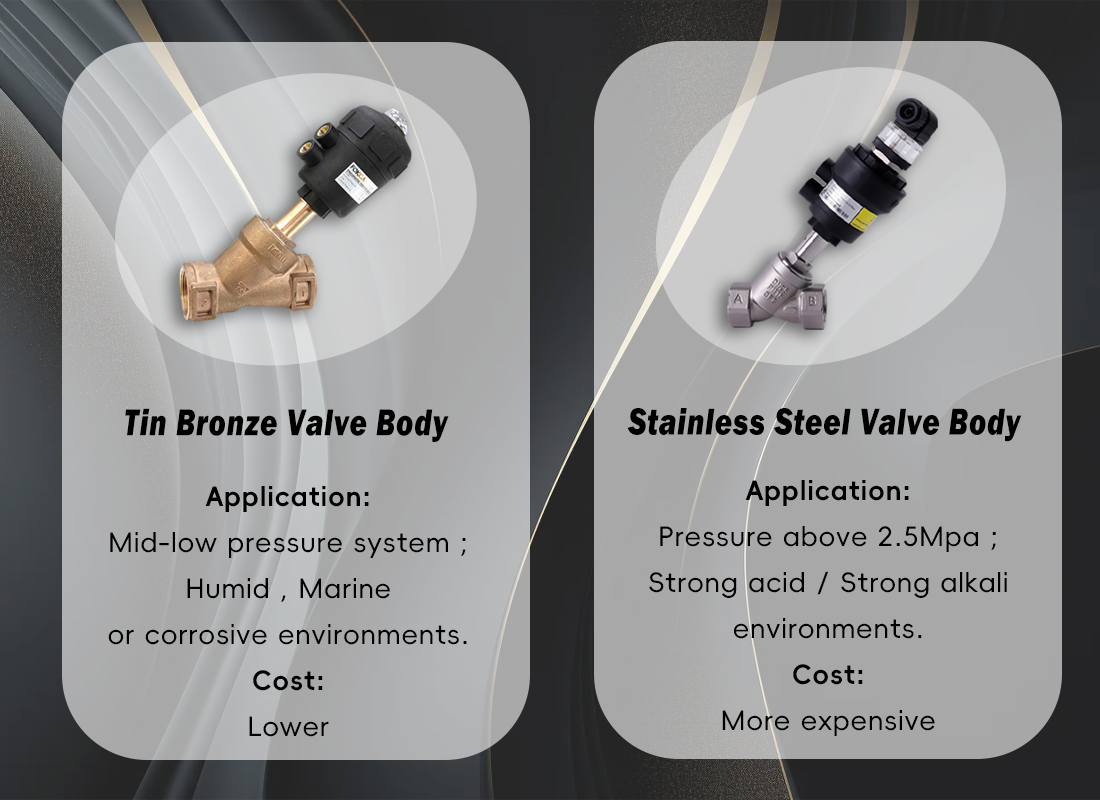

•Application suitability

Each material has its strength:

Selection Tips

For marine environments, humid conditions, or mid-low pressure fluid systems, tin bronze should be your first choice—excellent corrosion resistance and lower total cost;For strong chemicals or high-pressure applications (>2.5 MPa), stainless steel remains the better option.

Tin bronze valve bodies have earned their place in demanding industrial environments due to their balanced performance and scientific alloy composition. Whether in marine engineering, chemical processing, or automated equipment, tin bronze provides an optimal blend of reliability, durability, and cost efficiency.

If you also need to use this type of pneumatic valves in your system, you can contact us directly.
