Manual Control for Debugging and Emergency Situations

In industrial automation, pneumatic solenoid valves are essential for controlling air, gas, or fluid flow. Many valves feature a small button, highlighted in the uploaded image, which allows manual operation without electrical power.

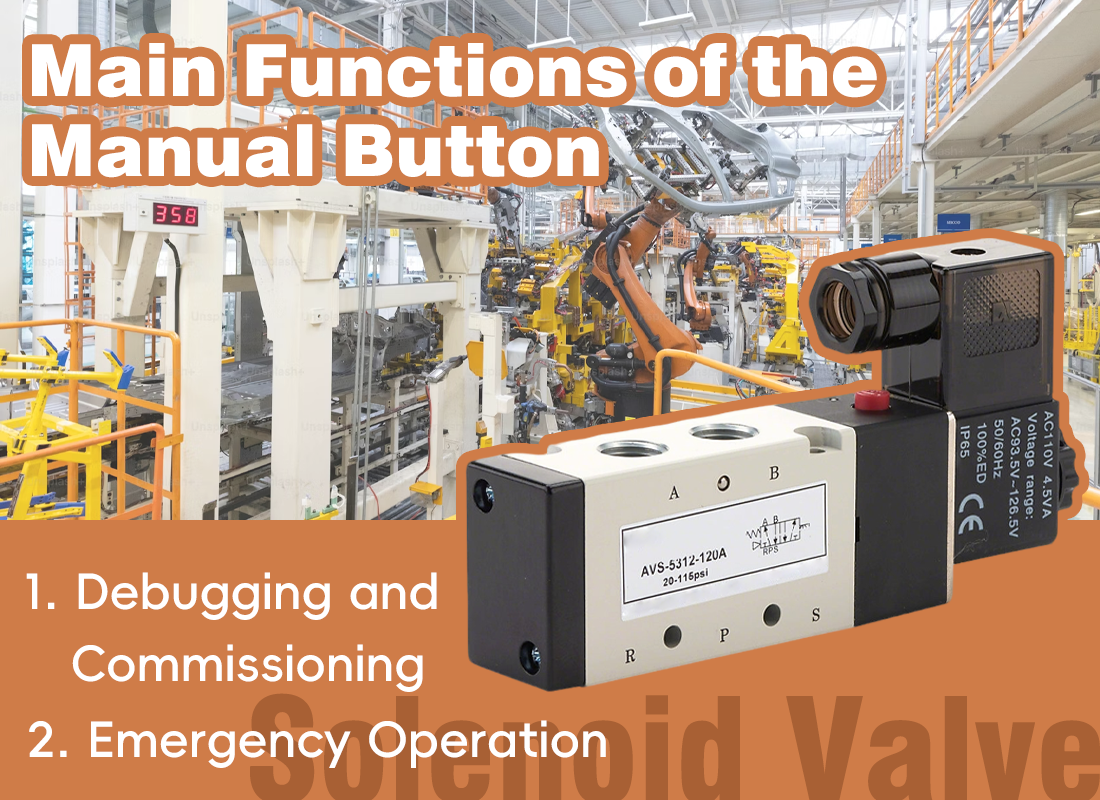

Main Functions of the Manual Button

The manual override button serves two primary purposes:

1. Debugging and Commissioning

After connecting air lines and wiring, pressing the button lets engineers check whether the valve opens and closes correctly.

Ensures actuator motion and valve plug operation are proper before full system activation.

2. Emergency Operation

During power outages or control system failures, the manual button allows the valve to operate manually.

Maintains critical airflow, prevents overpressure, and supports safe equipment shutdown.

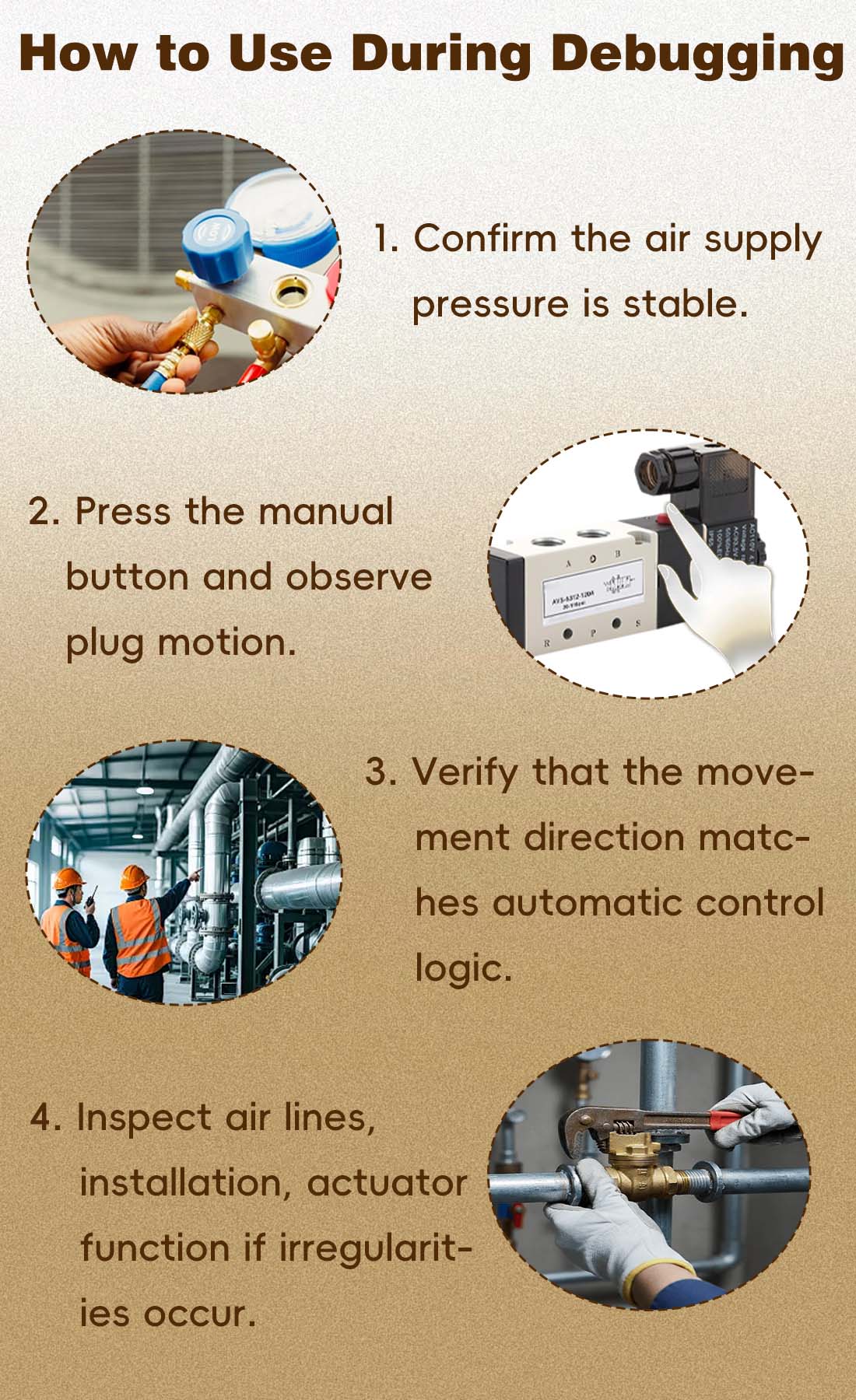

How to Use During Debugging

Typical steps include:

① Confirm the air supply pressure is stable

② Press the manual button and observe plug motion

③ Verify that the movement direction matches automatic control logic

④ Inspect air lines, installation, or actuator function if irregularities occur

Manual operation ensures proper commissioning without energizing the coil, reducing downtime and potential errors.

Emergency Situations

Unexpected power loss or system failure can occur. The manual button provides a non-electrical method to operate the valve, allowing operators to:

◆ Maintain essential airflow and prevent production interruption

◆ Avoid overpressure, backflow, or fluid accumulation

◆ Provide safe manual intervention on-site

This makes the manual button a critical safety feature in pneumatic systems.

Safety and Best Practices

◆ Press gently to avoid mechanical stress

◆ Use manual operation only for short-term testing or emergencies

◆ Ensure the button resets to its default position before resuming automatic control

◆ Regularly inspect for debris or blockage

Proper handling extends valve life and ensures reliable system operation.

If you want to know more about the pneumatic solenoid valves, you can contact us directly.
