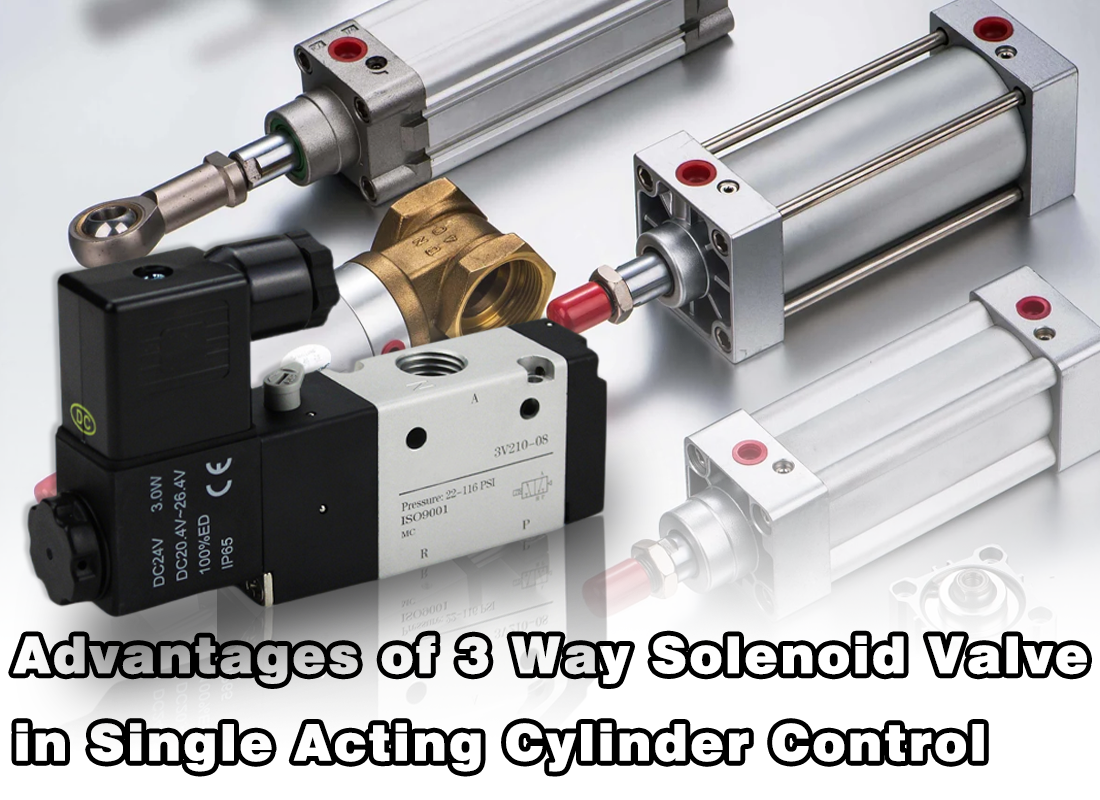

Advantages of 3 Way Solenoid Valve in Single Acting Cylinder Control

Feb 02, 2026

The motion of a single acting cylinder appears straightforward, yet the air circuit behind it requires a precise switching device. The cylinder needs stable air supply for extension and a reliable exhaust path for spring return. Using two separate 2-way valves often leads to complex piping and timing errors. A 3 way solenoid valve integrates these functions in one body and has become the standard solution in pneumatic automation.

Understanding the Cylinder Action Logic

A single acting cylinder has only one working chamber. When compressed air enters, the piston moves in the working direction; when the air is released, the internal spring pushes it back. The control component must therefore connect the cylinder either to the pressure source or to the exhaust port. This is exactly the task of a 3/2 way solenoid valve, which changes the internal flow path through spool movement.

During energizing, the valve links the inlet with the cylinder port. After de-energizing, the same port is connected to exhaust. This dual function explains why a 3-way pneumatic solenoid valve is more efficient than using two individual valves.

How One Valve Performs Two Functions

The internal structure of a 3 way normally closed solenoid valve allows instant transition between supply and venting. In packaging machines, clamping fixtures, and pick-and-place units, the valve must react thousands of times per day. The integrated design reduces leakage points and ensures synchronized operation, which is critical for industrial automation solenoid valves.

Function	Required by cylinder	Realized by 3 way valve
Air supply	Extension movement	Inlet → cylinder port
Air exhaust	Spring return	Cylinder port → exhaust
Safety stop	Pressure release	Direct exhaust channel

Switching Characteristics

Compared with a 2-way design, the 3 way solenoid valve switching process is more direct. The exhaust path is built into the valve body, avoiding additional tees or shuttle valves. For high-speed machines, a fast response 3 way solenoid valve shortens cycle time and improves repeatability.

Engineers often compare pilot-operated vs direct acting 3 way valve structures. Direct acting models provide quick reaction at low flow, while pilot types are better for larger cylinders and higher pressure ranges.

Installation and Component Integration

Modern products such as compact 3 way solenoid valve and modular manifold solenoid valves simplify assembly. With standardized DIN connector 3/2 solenoid valve interfaces and various coil voltage 3 way valve options, the valve can be easily adapted to different control platforms.

For pneumatic drives, the valve is commonly described as 3 way valve for pneumatic cylinder or 3 way valve for air actuator. Proper selection ensures that the exhaust capacity matches the cylinder volume, preventing back pressure that could slow the return stroke.

Typical Applications

Advantages of 3 Way Solenoid Valve in Single Acting Cylinder Control

◆ Material handling grippers

◆ Safety doors requiring automatic venting

◆ Dosing units with intermittent motion

◆ Test benches using AC/DC 3 way solenoid valve

In these scenarios, a pneumatic directional control valve with three ports provides the simplest architecture.

Selection Considerations

When choosing a valve for a single acting cylinder, engineers should evaluate:

◆ Flow coefficient and exhaust capacity

◆ Response time of high speed 3 way solenoid valve

◆ Compatibility with industrial fluid control solenoid valve standards

◆ Mounting style such as 3 way solenoid valve manifold mounting

A clear understanding of selecting vs diverting 3 way valves helps avoid misapplication, especially in systems where supply and exhaust must never overlap.
